Ultrasonic Leak Detection in Commerce City, CO
Adams County licensed. Around-the-clock emergency response. We find the leak before opening the wall.

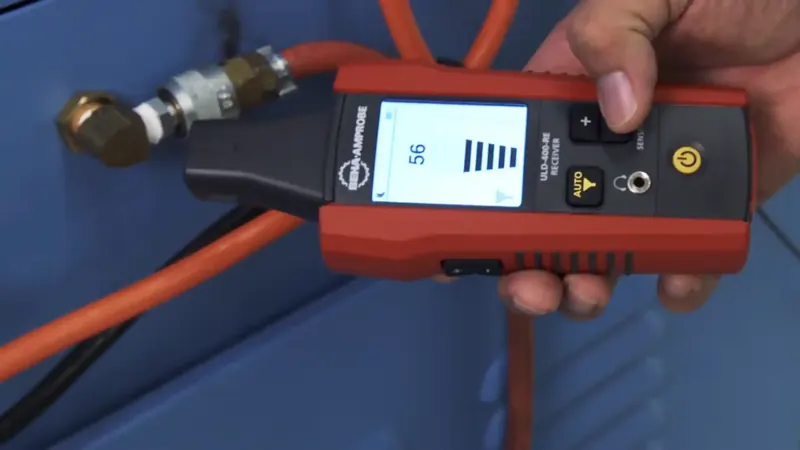

Call (303) 552-3896Ultrasonic leak detection operates at frequencies above 20,000 Hz, above the range of human hearing and above the frequency band that standard acoustic equipment monitors. Pressurized fluid escaping through a small orifice, including a cracked valve seat, a failing supply line fitting, or a micro-fracture in a pressurized pipe wall, generates ultrasonic turbulence at the exit point. An ultrasonic transducer pressed against the pipe surface or the surrounding material detects this high-frequency signal and converts it to an audible output or a waveform display for analysis.
The practical advantage of ultrasonic detection in Commerce City is specificity. While standard acoustic equipment picks up all sounds in the detection frequency range, including HVAC operation, traffic from the I-70 and I-270 corridor, and water flowing through pipes that are not leaking, ultrasonic detection filters for the specific high-frequency turbulence signature of a pressurized escape. A valve that is not fully seating, producing a micro-bypass rather than a full flow leak, is a classic ultrasonic target: the bypass produces ultrasonic turbulence at the seat that standard acoustic equipment does not resolve clearly, but that an ultrasonic transducer identifies and localizes.
Ultrasonic Detection Applications in Commerce City
Valve body assessment: the original shutoff valves in Commerce City homes from the 1960s to 1980s, compression-type ball valves and gate valves that have been in service for 40 to 60 years, sometimes fail to seat completely. An internal bypass through the failed seat produces ultrasonic turbulence at the valve body. Pressing an ultrasonic transducer against the valve body downstream of a suspect valve, while upstream pressure is maintained, detects this bypass without disassembling the valve. This assessment is faster than removing and testing the valve physically and provides immediate confirmation before any repair work begins.
Fitting assessment: in-wall copper supply at fittings, tee connections, and elbows in Commerce City tract homes shows the highest failure frequency from pre-2021 SACWSD water hardness effects. An ultrasonic transducer against the wall surface above a fitting location detects high-frequency turbulence from a micro-fracture at the fitting before any standard acoustic signal is producible at that flow rate.
Combination with standard acoustic: in a full supply system assessment for a Commerce City property, ultrasonic scanning identifies the suspect locations and standard acoustic or electronic correlation confirms and pinpoints the failure. The two frequency ranges together provide a more complete picture of supply system condition than either method alone. Call (303) 552-3896 to discuss whether ultrasonic assessment is the right starting point for a suspected supply system condition issue in your Commerce City home.
Call 24/7: (303) 552-3896Frequently Asked Questions
When is ultrasonic leak detection used instead of acoustic in Commerce City?
Ultrasonic detection is preferred when the leak flow rate is too low for standard acoustic detection, when valve body assessment is needed without disassembly. And when fitting failures need to be distinguished from background noise in high-traffic-noise environments near the I-70 and I-270 corridor. Standard acoustic correlation is used when the flow rate is sufficient and the pipe material is metal. The two methods are often used in combination.
Can ultrasonic detection find leaks in my Commerce City home's walls?
Yes. An ultrasonic transducer pressed against the wall surface above a suspected pipe fitting or valve location detects high-frequency turbulence from pressurized water escaping through a micro-fracture or valve bypass. This works through standard drywall and plaster without any surface penetration, and the signal can be detected before the leak flow rate reaches the threshold for standard acoustic detection.
Does ultrasonic detection work on PEX supply in Commerce City master-planned homes?
Yes. Ultrasonic transducers detect the high-frequency turbulence at the failure point regardless of pipe material, unlike acoustic correlation which is more material-specific. For PEX supply in Reunion and Belle Creek slab homes where acoustic correlation accuracy is reduced by the pipe material, ultrasonic scanning at the manifold connections and fitting locations can identify the specific fitting that is failing.
